Extra-Span-Shield

Extra Span Shield

    Extra Span Shield

    The Extra Span type shield (formerly known as the Mini ES Shield), as a product, sits between the Mini type shield and the Ladder type shield.

    The Extra Span type shield is used as a permanent solution for protect both personnel and equipment from the harsh weather conditions experienced both onshore and offshore in the oil and gas industry.

    They are of a single layer construction but can be altered to provide a double layer of protection. Intended for protection of key equipment and in areas where personnel will not come into direct contact with the radiant shields.

    The shield is of a single layer construction which can reduce the wind speed by up to 62% without affecting light transmission and ventilation. This can be further expanded by adding an additional layer which will reduce the wind speed by up to 72%. Protection against radiant heat is also provided.

    The Extra Span Shield has been successfully tested to wind speeds in excess of 100mph.

    Product Features

    Key Features

    • Independently tested up to 20 kW/m2
    • Heat flux reduction in excess of 80% at 300mm behind the shield
    • Designed primarily for protection of equipment
    • Able to span large distances between supporting steelwork
    • Uses the same heavy duty radiant mesh as Ladder shields
    • All stainless steel type 316L construction
    • Lower cost and weight
    • Excellent light transmission and ventilation
    • Quick onsite installation and removal, supplied complete with all necessary A4 Stainless Steel fasteners
    • Load tested up to 8.2 kN/m2

    Click to download the PDF Data Sheet for Locker Extra Span (formerly Mini ES) Heat Shield.

    Key Features

    • Wind efficiency 62% (72% with additional layer)
    • Independently tested at wind speeds in excess of 100mph (87knots/h)
    • Able to span large distances between supporting steelwork
    • All stainless steel type 316L construction
    • Ideal for permanent wind and weather protection
    • Excellent light transmission and ventilation
    • Quick onsite installation and removal
    • Supplied complete with all necessary A4 Stainless Steel fasteners

    Extra Span Shield: Wind Speed Reduction Test Results

    Free Flow
    Wind Speed    		Speed Recorded
    Behind Shield    		Total Reduction
    in Speed    		Percentage
    Reduction    		Max
    Deflection
    (mph)(mph)(mph)(%)(mm)
    5317366814.8
    8231516233.3
    8732556348.5
    9435596361
    9737606269.6
    10138636276.5

    Tabulated values are extracted from Test Report No. R11918. On completion of the wind speed test the shields were fully inspected and no evidence of damage was identified.

    Click to download the PDF Data Sheet for Locker Extra Span (formerly Mini ES) Wind Shield.

    Open post

    Ladder Shield

      Ladder Shield

      The "Ladder" shield consists of dual skin shielding media attached to both sides of a ladder frame to provide maximum protection in areas where personnel may come into contact with the shield, such as Stair tower and Derrick areas.

      Robust construction - primary radiant shielding incorporates heavy duty woven mesh for maximum heat flux reduction.

      Key Features

      • Independently tested up to 60 kW/m2
      • Heat flux reduction in excess of 80% at 150 mm distance behind the shield.
      • Rolled Hollow section framework gives high resistance to wind buffeting.
      • All stainless steel type 316L construction.
      • Able to withstand continuous thermal cycling.
      • Excellent light transmission and ventilation.
      • Good protection against wind and snow.
      • Quick on site installation and removal, supplied complete with all necessary A4 Stainless Steel fasteners.
      • Mesh proven to reduce wind speed by over 70%
      • Load tested to 24 kN/m2

      Single Skin Ladder Shield: Wind Speed Reduction Test Results

      Free Flow
      Wind Speed      		Speed Recorded
      Behind Shield      		Total Reduction
      in Speed      		Percentage
      Reduction      		Max
      Deflection
      (mph)(mph)(mph)(%)(mm)
      55262952.714
      60352541.720
      65362944.626
      70363448.633
      75383749.335
      80384252.538

      Double Skin Ladder Shield: Wind Speed Reduction Test Results

      Free Flow
      Wind Speed      		Speed Recorded
      Behind Shield      		Total Reduction
      in Speed      		Percentage
      Reduction      		Max
      Deflection
      (mph)(mph)(mph)(%)(mm)
      55154072.718
      6018427023
      65204569.231
      70205071.433
      75235269.335
      80225872.536

      Tabulated values are extracted from Test Report No. R11918

      On completion of the wind speed test the shields were fully inspected and no evidence of damage was identified.

      Click to download the PDF Data Sheet for Locker Ladder Heat Shield.

      Open post

      Flare Deck Shield

        Flare Deck Shield

        Key Features

        • Open grid serrated floor panel bolted to heavy duty woven mesh ladder type heat shield
        • Mesh aids cooling and allows free movement of air and liquids
        • Available in stainless steel type 316L and Incoloy 800HT
        • Designed to withstand evenly distributed load of up to 20 kN/m2
        • Tested to front face surface temperature of 700°C.
        • Temperature reduction of 87% on supporting steelwork
        • Penetrations and kick plates incorporated as required.
        • Grid floor panels removable from top working surface
        • No special tools required

        Click to download the PDF Data Sheet for Locker Flare Deck Heat Shield.

        Why is a Flare Deck Heatshield Required?

        Flare deck heat shielding is a crucial component designed to protect personnel, equipment, and surrounding infrastructure from the intense heat generated by flaring operations on offshore drilling rigs. Flaring is the controlled burning of excess gases and hydrocarbons released during oil and gas production that cannot be otherwise used, and it produces a significant amount of heat that can pose various safety and operational risks.

        The heat-shielding system is typically installed on top of the flare deck structure. It consists of an open grid serrated floor panel, bolted to heavy duty woven mesh ladder type heat shield. Construction is typically in all stainless steel 316L although other high temperature material can be used as required.

        The Benefits of Locker Flare Deck Heatshield

        One key feature of Locker offshore rig flare deck Heatshielding is its ability to withstand a front face surface temperature of 700 °C with an 87% reduction on the temperature recorded on the rear supporting steelwork. Metal mesh aids cooling and allows free movement of air and liquids. This whole structure is designed to reduce radiant heat exposure to critical components and personnel located below the flare deck. This design prevents excessive radiated heat exposure, minimising the risk of fire hazards and thermal damage to nearby equipment and structures.

        In addition to radiant heat reduction, the Locker heatshield system is designed to withstand a universally distributed load of 5kN/m² as standard. Penetrations and kick plates can be incorporated as required.

        Furthermore, the offshore rig flare deck Heatshielding is designed to be durable and resistant to harsh offshore environmental conditions, including corrosive saltwater, strong winds, and UV radiation. It undergoes rigorous testing and complies with industry standards and regulations to ensure its effectiveness and longevity in offshore settings.

        Overall, the offshore rig flare deck Heatshielding is an essential safety measure, providing a critical barrier between the intense heat generated during flaring operations and the personnel, equipment, and infrastructure on offshore drilling rigs. It plays a crucial role in maintaining safe working conditions, protecting assets, and minimizing the potential risks associated with high-temperature flaring activities.

        Summary of Benefits

        • Designed to incorporate complex shapes to fit around flare and ignition piping, pad eyes and davits as required.
        • 316L SS Flare Deck Heatshields have been front face tested to 700°C with resultant temperature of 92°C recorded on supporting steelwork behind the Heatshield.
        • Heatshields tested up to 90kW/m² with a reduction in excess of 80% behind the shield.
        • The use of radiant mesh as opposed to perforated plate results in lower noise generated through the Heatshields, which will be less than 75dBA at 25m/s
        • Manufactured as standard in 316L SS. Also 310S and Alloy 800H / HT can be provided if required.
        • Standard grating consists of 30 x 3mm bearing bars spaced at 44.44mm c/c with 15 x 2mm transverse bars spaced at 99.99 mm c/c with a single layer of 6.38mm aperture Radiant Mesh welded to the underside. Alternative grating configurations can also be accommodated.
        • Total combined weight of support frame and standard grid floor is 42kg/m² - 316L SS and 50kg/m² - 310S and Incoloy 800H / HT
        • Standard Uniform Distributed Load (UDL) of 5kN/m² up to 20kN/m² to accommodate placement of equipment on the top surface. Higher loads can also be accommodated and designed into the Heatshields as required. Loadings are based on Locker standard grating specification (44.44 x 99.99).
        • Flare Deck Shields are installed from the top surface with the radiant mesh welded to the underside of the serrated flooring, preventing dropped objects from passing through the flooring and reducing the need for rope access personnel during change out.
        • Can be easily installed in the Horizonal or Vertical planes as required.
        • Panels can be easily removed for transportation from shipyard to site.
        • Woven wire mesh promotes free movement of air and liquids.
        • Access hatches easily incorporated with no trip hazards.
        • Maintenance free for the lifespan of the project.
        Open post

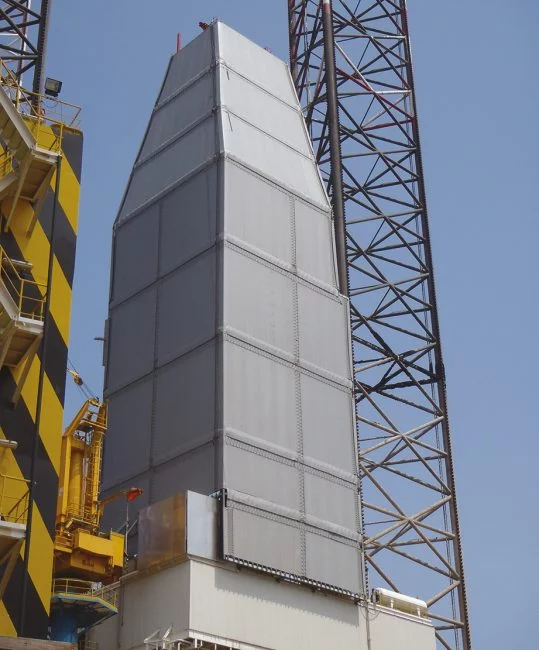

        Hakuryu 10

        Fabric Shield

          Galebreaker Industrial Fabric Shield

          Our product portfolio features the Galebreaker Industrial range of lightweight tensioned fabric Heat and Wind shields. This collaboration will expand the range of heat and wind shielding products specifically designed for the oil and gas sectors.

          Galebreaker Industrial is a UK based company specialising in fabric technology with 30 years’ experience developing and manufacturing heat and windshield products across a broad range of industries.

          Their range of fabric Heat and Wind Shields are independently tested by UKAS laboratories and provide the following benefits:

          • Lightweight, yet robust and durable
          • Easily accommodates access and pipework requirements
          • Quick and easy to install, usually to existing structures without welding
          • Short lead times, low freight costs

          The Galebreaker Industrial Wind Shield provides maximum protection from extreme wind and weather conditions on offshore oil and gas installations, whilst maintaining a light and airy working environment. The heat shield also gives maximum heat protection with minimal additional weight. It is verified by independent conductivity and radiant temperature heat tests.

          Fabric shielding can often be installed quickly and simply to existing structures using a patented fixing system.
          This helps to keep additional weight to a minimum and greatly reduces installation time and costs. Check this out in the video:

          Product Features and Specifications

          Galebreaker Industrial Heat Shields are lightweight and flexible with a range of fixing techniques available.

          Key Features

          • Quick and easy to install with marine grade fixings
          • Silver-grey Vamac® coated polyester base cloth
          • Excellent UV and abrasion resistance
          • Proven efficiency: protection against radiated heat up to 10 kW/m² (3170 Btu/ft²/hr) for up to 1 hour and 6.3kW/m² (2000 Btu/ft²/hr) for continuous exposure
          • Radiant Heat reduction of 86%
          • Temperature range -30°C to + 180°C
          • Lightweight and very durable: total weight including fixings 2.5 kg/m2
          • Approx. 900g/m2 weight of material
          • Designed to withstand wind speeds up to 53m/s or 120 mph
          • Shields can be rolled into bales for easy handling, shipping and storage
          • Products available for temporary and permanent applications

          Fixings and Safety

          The Galebreaker Industrial Fabric Heat Shield requires a minimal support structure (fixing to client built subframe adds typically 10.8 kg/m2 in total for the subframe, material and fittings).

          The patented fastening system means it is quick and easy to fit and tension.

          All fixings are stainless steel marine grade (316 standard) or galvanised, and protective wraps and safety wires are also installed as necessary.

          Single skin in construction, the PVC coated polyester fabric shield features a patented built in tensioning system which means it is quick and easy to fit and tension.

          Click to download the PDF Data Sheet for Locker Fabric Heat Shield.

          Each windshield is custom designed and manufactured in the UK. Panels are able to span lengths of up to 9.1 metres, although an additional skirting feature means panels can be overlapped to form a complete protective wall with no limit for overall wind shield width.

          Key Features

          • Wind, rain and dirt resistant
          • Excellent UV resistance
          • Proven efficiency: can reduce wind speed by up to 75%
          • Charcoal grey colour polyester material with PVC coating
          • Fire resistant classification B-s2,d0 to EN 13501-1
          • Lightweight,strong and very durable: 1.25 kg/m2 total weight including fixings
          • Approx. 380 g/m2 weight of material
          • Caters for temperature range -30 °C to +70 °C. Max. temperature protection 70 °C
          • Designed to withstand wind speeds: standard 90 mph, maximum 120 mph (53 m/s)
          • Shields can be rolled into bales for easy handling, shipping and storage.

          Fixings and Safety

          The Galebreaker Industrial Fabric Wind Shield requires a sub-frame support structure (fixing to client built subframe adds typically 7.6 kg/m² in total for the subframe, material and fittings).All fixings are stainless steel marine grade (316 standard) or galvanised and protective wraps and safety wires are also installed as necessary.Single skin in construction, the PVC coated Polyester fabric shield features a patented built in tensioning system which means it is quick and easy to fit and tension.Click to download the PDF Data Sheet for Locker Fabric Wind Shield.
          Open post

          Corrugated Shield

            Corrugated Shield

            Locker corrugated shield can be designed and configured for permanent protection from either heat or wind. As a result, both personnel and equipment can be protected from the harsh weather conditions or radiated heat experienced both onshore and offshore in the Oil and Gas Industry.

            Heat Shielding Applications

            For heatshielding applications, an open area of 32% results in a reduction of radiant heat by over 80% behind the corrugated heat shield.

            Wind Shielding Applications

            For windshielding applications, the corrugated panel has a single layer construction which can reduce the wind speed across the shield by over 75%.

            Product Features

            With an open area of 32%, the corrugated shield reduces radiant heat by over 80% behind the heat shield.

            Manufactured from perforated 316L Stainless Steel, the heat shield panel is available in both single and double layer constructions, which can be used for a wide range of applications.

            It is predominantly used where large repetition of panel sizes is required, and offers numerous connection options.

            Whilst providing excellent protection against the effects of radiant heat, the heat shield also acts as an extremely effective wind shield barrier.

            Key Features

            • Independently tested up to 20 kW/m2
            • Heat flux reduction in excess of 80% at 150mm behind the shield
            • All Stainless Steel Type 316L construction
            • Able to span large distances up to 4.5m between supporting steelwork
            • Wind speed reduction of 75%
            • Successfully load tested to wind speeds in excess of 140mph
            • Excellent light transmission and ventilation
            • Quick on-site installation and removal
            • Supplied complete with all necessary A4 Stainless Steel fasteners and isolation materials
            • Also ideal for permanent wind and weather protection.

            Click to download the PDF Data Sheet for Locker Corrugated Heat Shield.

            Manufactured from perforated 316L Stainless Steel, the Wind Shield panel is a single layer construction which can reduce the wind speed across the shield by in excess of 75%, without affecting light transmission and ventilation.

            Key Features

            • Wind speed reduction of 75%
            • Load tested to represent wind speeds in excess of 140mph
            • Able to span large distances between supporting steelwork
            • All Stainless Steel type 316L construction
            • Ideal for permanent wind and weather protection
            • Excellent light transmission and ventilation
            • Also reduces radiant heat from offshore flares by more than 80%
            • Quick on-site installation and removal.

            Load Test Deflection Results

            Load Test
            Weight (kg)            		Equivalent Wind
            Speed (MPH)            		Deflection From Start (mm)
            Point APoint BPoint C
            00000
            120601022
            240851744
            3601032355
            4801183066
            6001324089
            720143651011

            Click to download the PDF Data Sheet for Locker Corrugated Wind Shield.

            Open post

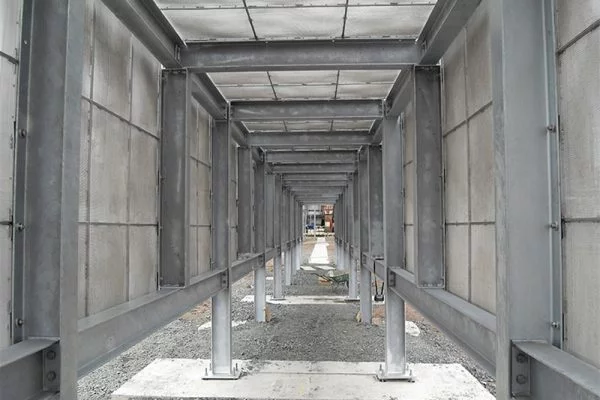

            Mini Shield

              Mini Shield

              The Mini type shield is used as a permanent solution for protect both personnel and equipment from the harsh weather conditions experienced both onshore and offshore in the oil and gas industry.

              'Mini' type shields are single layer construction providing benefits similar to the Ladder type, but intended for protection of equipment in areas where personnel will not come into direct contact with the radiant shields. They are typically used for small panels and complex shapes.

              Product Features

              Key Features

              • Designed primarily for protection of equipment.
              • Uses the same heavy duty radiant mesh as Ladder shields.
              • All stainless steel type 316L construction.
              • Lower cost and weight
              • Excellent light transmission
              • Excellent ventilation.
              • Quick on site installation and removal
              • Supplied complete with all necessary A4 Stainless Steel fasteners.

              Click to download the PDF Data Sheet for Locker Mini Heat Shield.

              The shield is of a single layer construction which can reduce the wind speed by up to 62% without affecting light transmission and ventilation. Protection against radiant heat is also provided.

              Key Features

              • Wind efficiency 62%
              • Mesh Independently tested at wind speeds in excess of 100mph (87knots/h)
              • Complex and intricate designs can be accommodated easily
              • All stainless steel type 316L construction
              • Ideal for permanent wind and weather protection
              • Excellent light transmission and ventilation
              • Quick onsite installation and removal
              • Supplied complete with all necessary A4 Stainless Steel fasteners

              Mini Shield: Wind Speed Reduction Test Results

              Free Flow
              Wind Speed              		Speed Recorded
              Behind Shield              		Total Reduction
              in Speed              		Percentage
              Reduction
              (mph)(mph)(mph)(%)
              53173668
              82315162
              87325563
              94355963
              97376062
              101386362

              Tabulated values are extracted from Test Report No. R11918. On completion of the wind speed test the mesh was fully inspected and no evidence of damage was identified.

              Click to download the PDF Data Sheet for Locker Mini Wind Shield.

              Open post

              Heat Shade

                Heat Shade

                Locker Heat Shades are specifically designed to provide radiant heat and temperature shielding for lighting. The formed shades are light in weight and rigidly constructed from our standard primary heat shield materials.

                The design allows 36% light transmission above the shade without any detriment to heat protection for the lighting.

                Key Features

                • Designed to protect lighting from the effects of radiant heat and elevated temperature.
                • Reduces heat flux by 80% (see typical heat flux reduction chart below).
                • Robust design manufactured in 316L grade stainless steel.
                • Performance warranted and independently tested.
                • Indefinite lifespan under normal operating conditions.

                Locker Heat Shades are made to order, the example shown illustrates the heat shade with standard type D32 ceiling mounting bracket.

                Typical Heat Flux Reduction Chart

                Radiant Temperature KW/m2
                Reduction %
                At front face of Heat Shade
                At light
                3.150.680
                4.730.980
                6.31.579
                9.5279

                Click to download the PDF Data Sheet for Locker Heat Shade.

                Open post

                Cable Tray Shield

                  Cable Tray Shield

                  Designed to protect power and equipment cables from the effects of elevated levels of radiant heat.

                  Key Features

                  • Reduces heat flux by up to 80% (see typical Heat Flux Reduction chart below)
                  • Can be easily retrofitted and customised to suit any configuration
                  • Easily removable top cover for access and maintenance with optional grab handles if required
                  • Supplied complete with all insulation gaskets and fasteners
                  • Robust all stainless 316L construction
                  • Performance warranted
                  • Independently tested
                  • Indefinite lifespan under normal operating conditions
                  • Available in standard 3m lengths or purpose built per application.

                  Instrumentation Covers and Enclosures

                  Bespoke heat shielding can be supplied to protect instrumentation enclosures and other key equipment.

                  Radiant Temperature KW/m2
                  Reduction %
                  At front face of Heat Shield
                  At sides and top of cable tray
                  3.15
                  0.60
                  80
                  4.73
                  0.90
                  80
                  6.30
                  1.50
                  79
                  9.50
                  2.00
                  79

                  Click to download the PDF Data Sheet for Locker Cable Tray Heat Shield.

                  Open post

                  Easy Connect Maintenance Shield

                    Easy Connect Maintenance Shield

                    Locker Heatshielding, in conjunction with our partners at Galebreaker, have developed a range of Heat and Wind shields which are aimed at the maintenance and short-term installation market.

                    Fixings and Safety

                    The shields incorporate a patented ratchet mechanism to tension panels in place. They are easily connected to existing platform steelwork, directly hooking to an aligned flange, using either Lindapter CF connection technology where a flange is perpendicular to the shield, or split clamp mechanisms for connecting to SHS.

                    Quick to install, the shields can be placed in any area where protection from radiant heat and adverse weather is required without the need for additional supporting steelwork. The Maintenance shield is supplied in standard lengths for installation in the majority of locations with additional extension pieces provided to extend the length as required. Extensions are attached using the ratchets on the rear which are then covered by flaps which are laced to the extensions to create a continuous shield.

                    On completion of the maintenance work the shields can easily be dismantled and stored away for the next scheduled work.

                    Scroll to top
